[Installation] How to Install ZUS Vehicle Health Monitor Mini/Lite

Sign Up & Create Your Vehicle Profile

Download the ZUS Smart Driving Assistant APP to pair ZUS Smart Vehicle Health Monitor Mini/Lite.

iOS Apple Store: https://apps.apple.com/us/app/zus/id1038723291

Android Google Play: https://play.google.com/store/apps/details?id=us.nonda.zus&hl=en


Install Your OBD II Diagnostic Scanner

After sign up, please plug the device in your OBD-II port.
The OBD-II port is usually located under the dashboard, beneath the steering wheel column (1-3 in the diagram below). If not located beneath the steering wheel column, look for the port in the areas indicated by numbers 4-9.

Pair Your Device with the ZUS App

The Key Points of Pairing

  1. Turn on GPS+Bluetooth+Internet on your phone.
  2. Pair the device in ZUS app instead of the system Bluetooth menu.

Click on  > Choose "Add nonda Vehicle Health Monitor Lite" > Follow the app instructions to complete pairing.


*One device can be linked with only one car profile. If you wish to use the device to monitor another car, you need to create another vehicle profile under your ZUS account and go through the pairing process again.

Important Note Before Using

We strongly suggest you open the ZUS app and keep your device connected before using it.
*For Android users, make sure you allow the ZUS App to run in the background, otherwise, it will be recycled by your phone’s operating system. If you don't know how to configure this on your phone, please refer to:

Key Features of  ZUS Smart Vehicle Health Monitor Mini/Lite

Safety Center & Engine Health Scan

Tap ” Safety Center” Then Tap First Scan to check your vehicle’s health. Make sure you are connected with the device and the engine is on.

You may read the faulty code details by a single click on the code.


Decode & Clean Error Codes

Tap “ Magical Brush” to clear DTC codes.
Pro Dashboard & Driving Habits Analysis
Tap “ Dashboard” to check real-time driving behaviors. When you are driving with the ZUS app OBD dashboard, the dashboard reminder cycle will turn into red either when your vehicle is in high Rev and speeding or you are in hard acceleration and a hard break. The dashboard can help as a reminder to develop better driving behavior.
Customizable Dashboard

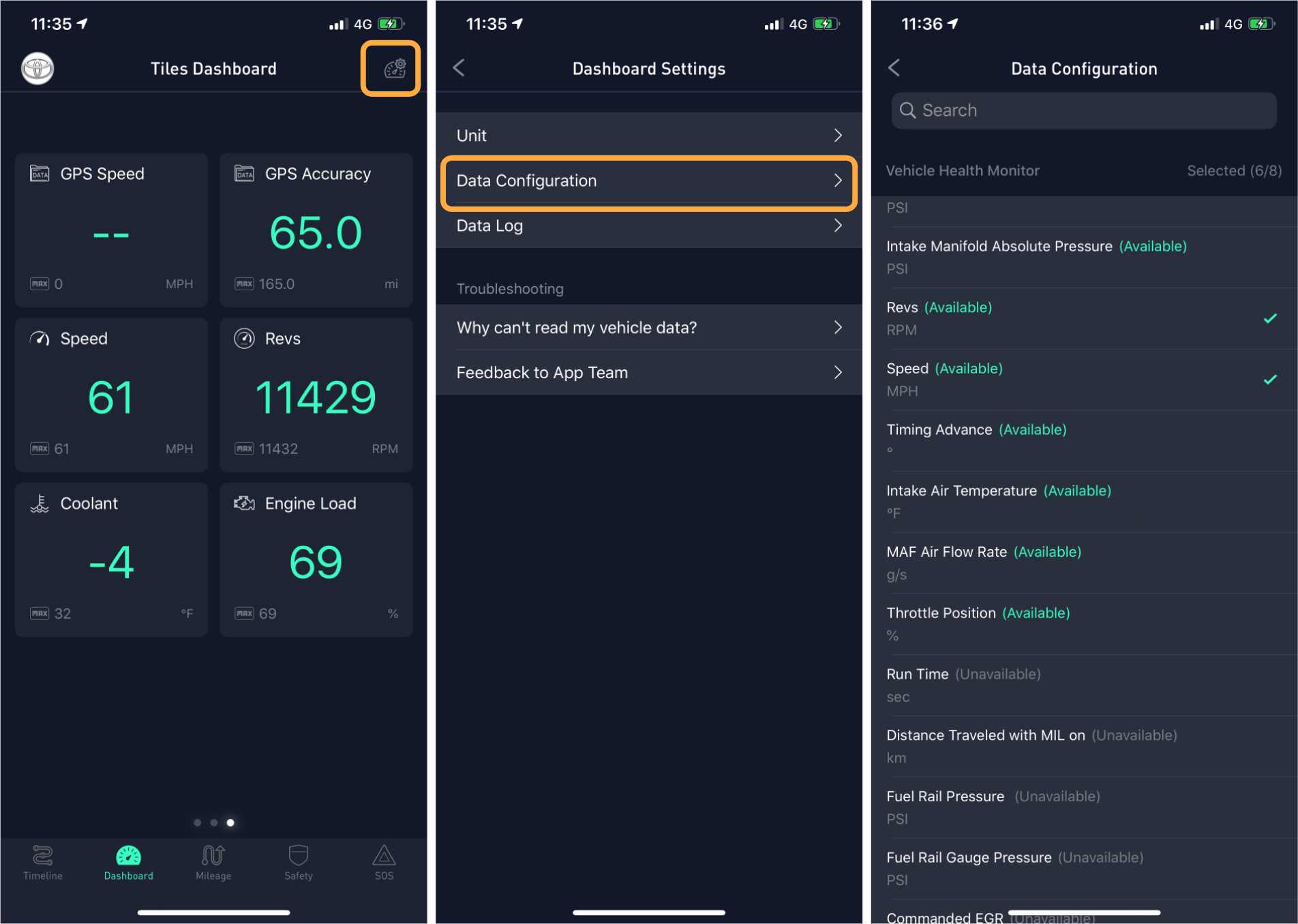

Swipe to the third dashboard and click the "Settings" icon in the top right corner to choose up to 8 items to be displayed on your dashboard.




You could also export your data log from "Settings-Data Log" if you wish to access all the data saved during your last trip.

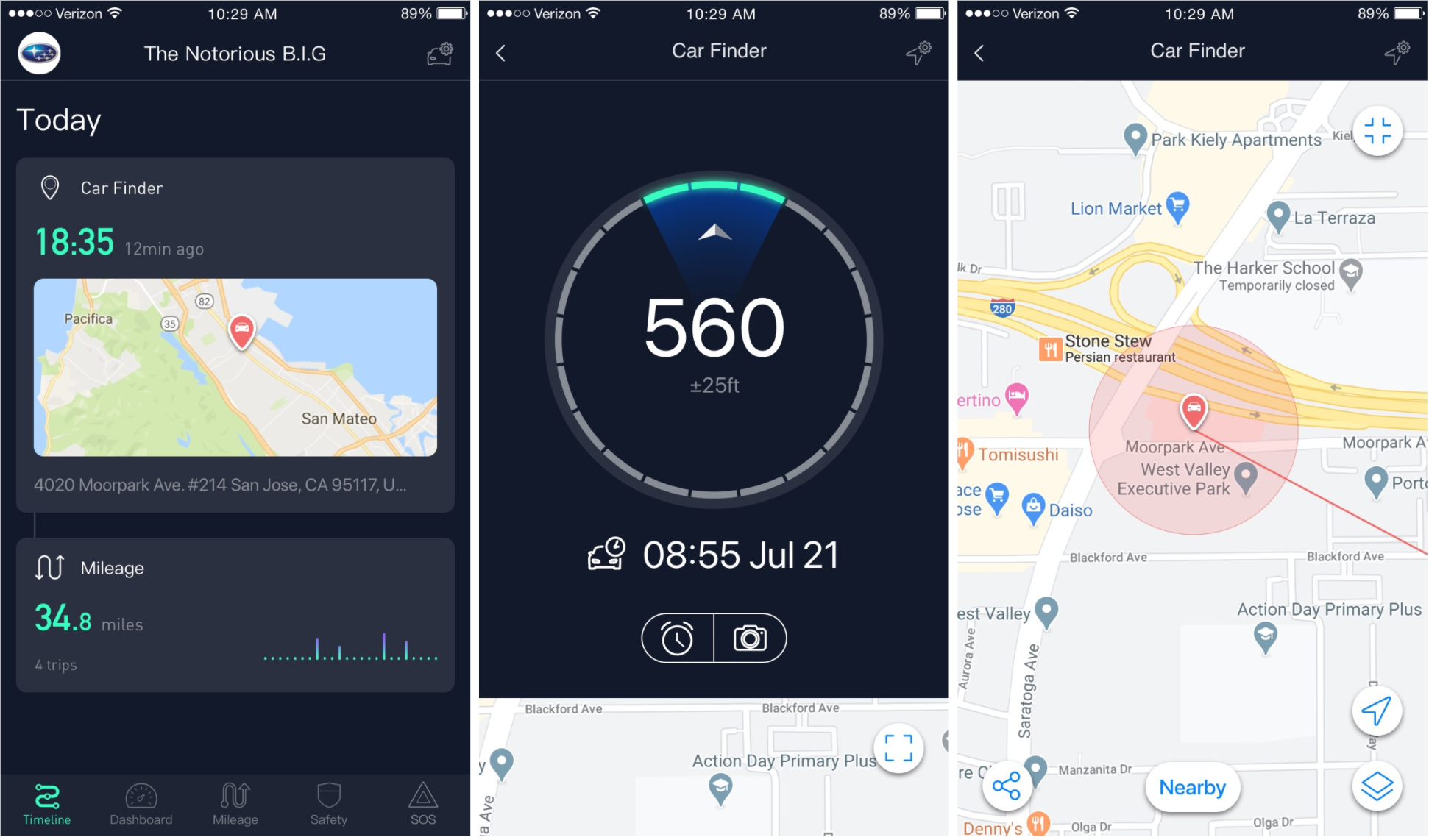

Car Finder & Mileage
Tap “ Finder” to locate your car
Tap “ Milage” to check your travel record



FAQ :

Q1. What are the differences between ZUS Smart Vehicle Health Monitor and ZUS Vehicle Health Monitor Mini/Lite?

In terms of features, there are no differences between them. ZUS Smart Vehicle Health Monitor Mini/Lite is a compressed version of the Vehicle Health Monitor.



Q2: Why does my ZUS app dashboard not showing any data after connection?

The ZUS app is supposed to show Rev, speed, engine load, coolant temperature and other data when your monitor is connected with the app.


If there is no data showing after you've driven more than 15 miles. We suggest you reach us at cs@nonda.us with the following information:

1. Phone Brand & Model.

2. Vehicle brand, model and year.

3. A screenshot showing your ZUS app has no data showing from the dashboard.



Q3: Why when my car's engine light is on but the ZUS app scanner didn't show any faulty code?

Health Monitor read faulty code based on world standard OBD-II PIDs, but some manufactures define many more PIDs specific to their vehicles. Thus, ZUS Smart Vehicle Health Monitor Lite might be not compatible with your car. You may find the incompatible list below:

[Compatibility] ZUS Smart Vehicle Health Monitor Incompatible Vehicle List

If you find your car is on the list, please contact our customer service at cs@nonda.us
